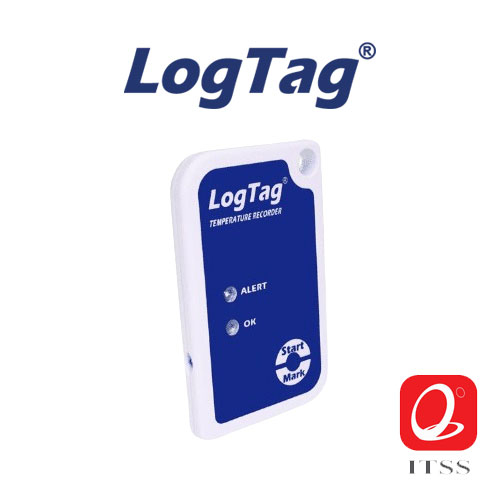

  Temperature Logger "LogTag" Model: TRIX-8
  Temperature Logger "LogTag" Model: TRIX-8
  Temperature Logger "LogTag" Model: TRIX-8

Temperature Logger "LogTag" Model: TRIX-8

สอบถามข้อมูล
02-557-1073
Manufacturer:
LogTag
Availability:
In Stock

The LogTag® TRIX-8 is a versatile, wide range, multi-trip Temperature Logger, featuring high-resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F). Enclosed in a robust and durable polycarbonate case, the TRIX-8 features a real-time clock, which provides date/time stamps for each temperature reading.



Using the LogTag® Interface and the freely available companion software LogTag Analyzer, the LogTag® is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag® Analyzer, which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.



The LogTag® TRIX-8 complies with the relevant international standards for temperature monitoring devices, such as FCC, CE, C-TICK, TÜV, EN12830, WHO PQS and RoHS. This not only demonstrates the quality of the LogTag® TRIX-8, but underlines its suitability for temperature monitoring applications where accuracy and consistency are required.



Product features:

  • WHO PQS Pre-qualified under E06/06: PQS CODE E006/00.
  • Versatile, wide range, multi-trip Temperature Logger.
  • 8000 readings memory capacity with up to 3 years battery life.
  • ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
  • Industry best download time – less than 5 seconds for full memory.



Specification

Product Model TRIX-8
Sensor Measurement Range

-40°C to +85°C (-40°F to +185°F)

Operating Temperature Range

-40°C to +85°C (-40°F to +185°F)

Storage Temperature Range

-30°C to +55°C (-22°F to +131°F)

Rated Temperature Reading Accuracy

Better than ±0.5°C for -20°C to +40°C



Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C



Better than ±0.8°C for +60°C to +85°C



Better than ±0.9°C for -40°C to -30°C.



Actual performance is typically much better than the rated values.



Accuracy figures can be improved by recalibration.

Rated Temperature Reading Resolution

Less than 0.1°C for -40°C to +40°C



Less than 0.2°C for +40°C to +80°C



Less than 0.4°C for +80°C to +85°C



LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.

Sensor Reaction Time

Typically less than 5 minutes (T90) in moving air (1m/s).

Recording Capacity

8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.

Sampling Interval

Configurable from 30 seconds to several hours.

Logging Start Options

Push button start or specific date & time. Optional start delay of up to 18 hours.

Recording Indication

Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.

Alarms

1 configurable upper and 1 configurable lower alarms.

Download Time

Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.

Environmental

IP65 (roughly equivalent to NEMA 4)

Power Source

CR2450 3V LiMnO2 Battery (Fixed)

Battery Life

1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly).

Real Time Clock

Built-in real time clock.



Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).



Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).

Size

86mm(H) x 54.5mm(W) x 8.6mm(T)

Weight 33g
Case Material

Polycarbonate
