Temperature and Humidity Data Logger

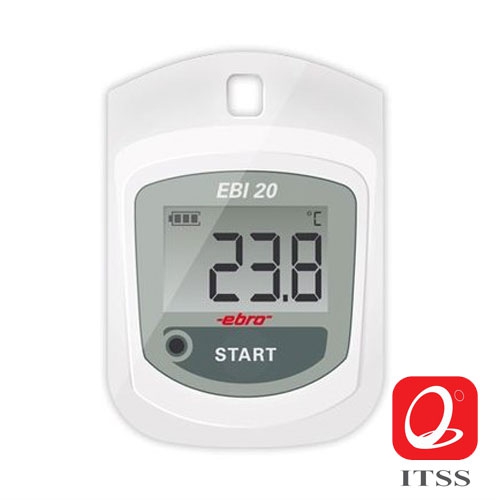

Temperature and Humidity Data Logger "Ebro" Model: EBI 20-TH1

Temperature and Humidity Data Logger "Ebro" Model: EBI 20-TH1

สอบถามข้อมูล
02-557-1073

Data logger series with excellent price/performance ratio.

Manufacturer:
EBRO
Availability:
In Stock
SKU:
DL001-EBRO

Data logger series with excellent price/performance ratio. The devices of the EBI-series are waterproof (IP67) and can store up to 40 measurement values can also be read at all times in the display. Devices for measuring the ambient temperature, core temperature, air humidity and air pressure are available.

This text is machine translated.



Highlights & Details

  • Expansion module
  • Notification
  • Watertight (IP67)
  • Temperatur logger according to EN 12830.



Facts

  • 24 months battery life at a measurement cycle of 15 min
  • User can replace the battery
  • Easy and quick reading of the data
  • Automatic recording of temperature data
  • Alarm via LED
  • No mains connection necessary
  • Min/max values in the display
  • Temperatur logger according to EN 12830.



Technical data

Temperature resolution 0,1°C
Sample rate 1 min to 24 hours.
Memory 1 channel 8000 measured values
Power supply (details) 3V lithium (CR2450)
Battery life 24 months for a measurement interval of 15 minutes at 25°C
Sensor NTC
Dim (L x W x H) 69 x 48 x 22 mm
Weight 45g
Height 22mm
Length 69mm
Width 48mm
Temperature reading range -30 up to 70 °C
Memory (readings) 20000
IP rating IP67
Calibrated to Manufacturer's standards (with certificate)
Interfaces USB
Unit of measurement Temperature
Type EBI 20-T1
Reading accuracy temperature 0.5°C
Sample rate (max.) 24h
Sample rate (min.) 1min
Temperature reading range (max.) 70°C
Temperature reading range (min.) -30°C
Temperature accuarcy (details) ± 0,5°C (-20°C bis +40°C)
Temperature -30 to +60 °C
Casing ABS
Reading range Temperature
Power supply CR 2450 button cell (1x)
Product type Temperature data logger
