Ultra Low Temperature Data Logger with External RTD Probe "TEMPSEN" Model: TEMPOD 200X
Ultra Low Temperature Data Logger with External RTD Probe "TEMPSEN" Model: TEMPOD 200X
Ultra Low Temperature Data Logger with External RTD Probe "TEMPSEN" Model: TEMPOD 200X
Ultra Low Temperature Data Logger with External RTD Probe "TEMPSEN" Model: TEMPOD 200X

Ultra Low Temperature Data Logger with External RTD Probe "TEMPSEN" Model: TEMPOD 200X

สอบถามข้อมูล
02-557-1073

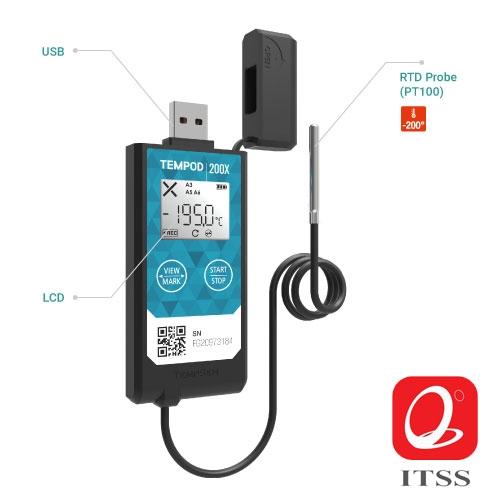

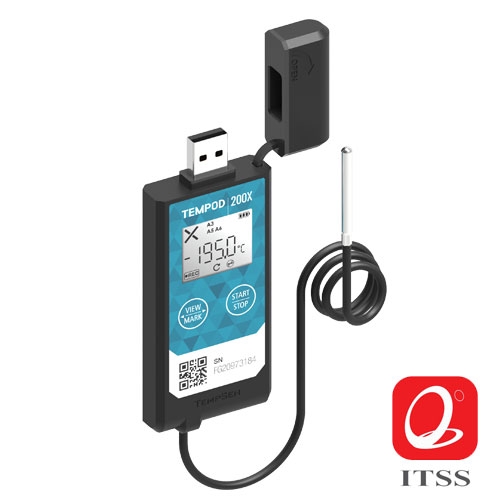

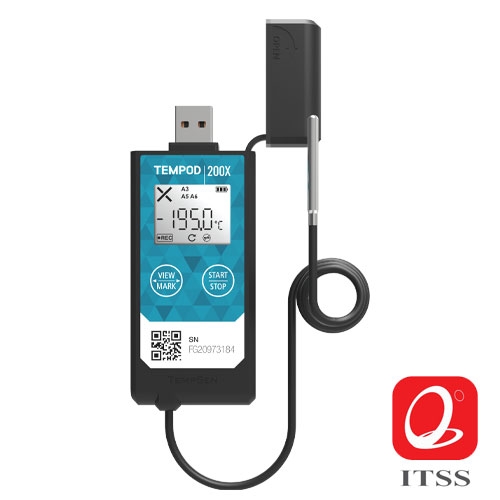

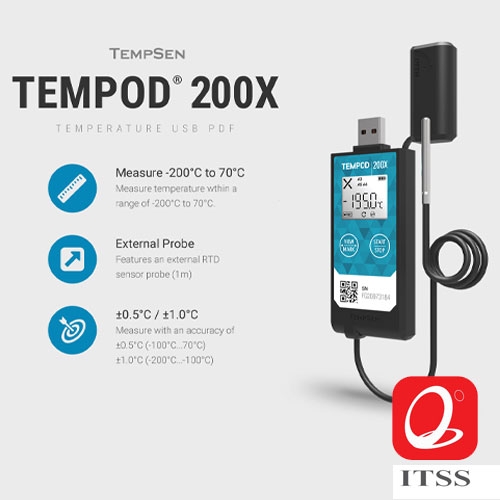

The TempSen Tempod 200X is an ultra-low temperature data logger designed to monitor environments of extremely low temperatures.

Manufacturer:
Tempsen
Availability:
In Stock

The TempSen Tempod 200X is an ultra-low temperature data logger designed to monitor environments of extremely low temperatures. The external RTD probe of this TempSen data logger can measure temperatures within a range of -200°C to +70°C making Tempod 200X an ideal data logger for monitoring temperatures of liquid nitrogen, such as liquid nitrogen freezers used in hospitals to store blood and bone marrow samples. Sea and air freight monitoring, distribution, storage, and dry ice shipping are also relevant applications.


The Tempod 200X USB and PDF data logger features a user-friendly data interface that allows users to easily download temperature data through a USB connection without any need for additional software. Tempod 200X data logger also automatically generates an encrypted PDF format report which includes recording statistics i.e., Max, Min, MKT, alarms results, graphs, and event tabular data, so you won’t miss any important information about your shipment.


The multi-use Tempod 200X temperature data logger has a memory capacity of 28,800 readings comprised of data logged every minute to every 2 hours. It features a built-in high and low alarm with 5 alarm ranges to alert changes in temperature.


Features of the Tempod 200X ultra-low temperature data logger include:

  • Auto PDF reporting with embedded raw data with no software required.
  • Intuitive LCD indication which presents all key information including recording statistics, alarm and running status, battery levels.
  • Multiple alarm ranges
  • Password protection
  • IP65 rating



Specification:

Measurement Range
-200°C...70°C (-328°F...158°F)
Accuracy
±0.5°C (-100°C…70°C)

±1.5°C (-200°C…-100°C)
Resolution 0.1°C / °F
Dimensions
100mm L x 40mm W x 12mm H
Weight
Approx. 68g
Battery
3.0V lithium battery, user replaceable
Battery Life
18 months
Usage Type
Multi-use
Sensors
Temperature: External RTD sensor probe (1m)
Memory Capacity
28800 readings
Start Mode
Manual / Auto / Temperature Start
Logging Interval
1 minute...2 hours
Alarm Ranges
High and low alarm / 5 alarm ranges
Display LCD

• OK(√), Alarm(x), alarm zones

• Running status

• Temperature statistics (max, min, avg)

• Remaining battery level

• Mark history
Button(s)
Start / Stop / View / Mark
Connection USB
Automatic Data File
Encrypted PDF report with embedded raw data
Software
TempSen Express
Compatible OS
Windows 7 / 10 / 11
Calibration
Factory NIST traceable 3-point calibration
Certifications
CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE
Protection Class
IP65
