Temperature and Humidity Data Logger
Temperature and Humidity Recorder "LogTag" Model: HAXO-8
Temperature and Humidity Recorder "LogTag" Model: HAXO-8

Temperature and Humidity Recorder "LogTag" Model: HAXO-8

สอบถามข้อมูล
02-557-1073

Record high resolution Temperature and Humidity readings simultaneously. Up to 8,000 paired humidity and temperature recordings ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms. For multiple applications use.

Manufacturer:
LogTag
Availability:
In Stock
SKU:
DL007-Logtag

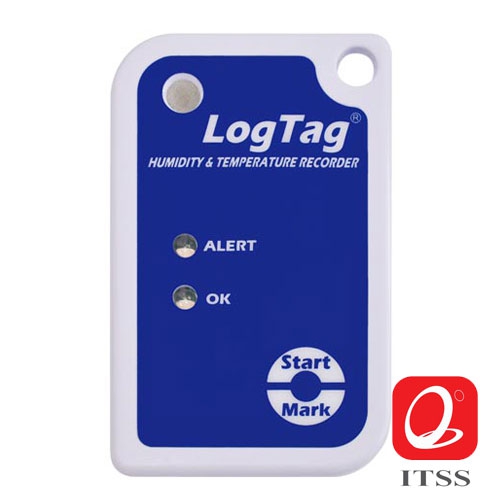

The LogTag® HAXO-8 Multi-Use Humidity and Temperature Logger measures and stores up to 8000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100%RH and -40°C to +85°C (-40°F to +185°F).



Enclosed in a robust and durable polycarbonate case – the HAXO-8 is equipped with a unique temperature sensor arrangement providing fast reaction time to temperature change and a real time clock which provides date/time stamps for each temperature reading.

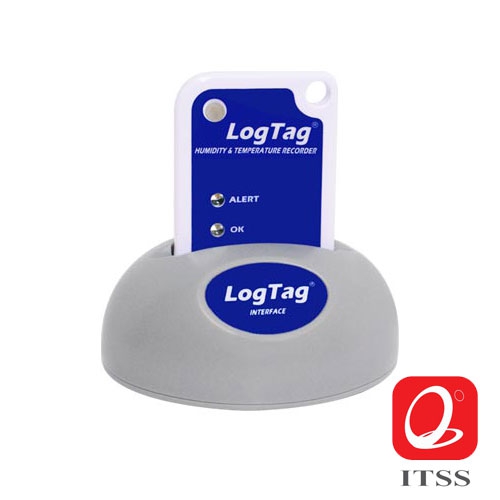

Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.



Readings are downloaded using LogTag Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.



The LogTag® HAXO-8 complies with the relevant international standards for temperature monitoring devices:- FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM and RoHS. This demonstrates the quality and suitability of the LogTag® HAXO-8 for temperature monitoring applications where accuracy and consistency is required.



SPECIFICATIONS

Product Model HAXO-8.
Sensor Measurement Range -40°C to +85°C (-40°F to +185°F).

Operating Temperature Range

-40°C to +85°C (-40°F to +185°F).

Storage Temperature Range

+10°C to +50°C (+50°F to +122°F).

Humidity Measurement Range

0% RH to 100% RH (non-condensing), with limitations.

Humidity Operating Range

0% RH to 100% RH (non-condensing), with limitations.

Storage Humidity Range

20% RH to 60% RH.

Rated Temperature Reading Accuracy

Better than ±0.45°C (±0.8°F) for +0°C to +50°C (+32°F to +122°F), typically ±0.3°C (0.6°F).
Better than ±0.8°C (±1.4°F) for +50°C to +80°C (+122°F to +176°F), typically ±0.5°C (0.9°F).
Better than ±0.95°C (±1.7°F) for -40°C to +0°C (-40°F to +32°F), typically ±0.6°C (1.1°F).
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below
Accuracy figures can be improved by recalibration.

Rated Humidity Reading Accuracy

Better than ±5%RH for 10%RH to 80%RH.
Better than ±6%RH for 0%RH to 10%RH.
Better than ±7%RH for 80%RH to 100%RH.
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.

Humidity Resolution

Better than 0.1% RH.

Temperature Resolution

Better than 0.1°C or 0.1°F

Recording Capacity

8,003 pairs of humidity and temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.

Sampling Interval

Configurable from 30 seconds to several hours.

Logging Start Options

Push button start or specific date & time. Optional start delay (30 seconds to 18 hours).

Recording Indication

Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.

Download Time

Typically less than 10 seconds for full memory, depending on computer or readout device used.

Environmental

IP61 (when hung or mounted vertically).

Power Source

CR2450 3V LiMnO2 Battery (Fixed).

Battery Life

Fixed Battery. 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly).

Real Time Clock

Built-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).

Size

86mm(H) x 54.5mm(W) x 8.6mm(T).

Weight

34g.

Case Material

Polycarbonate.
